Hastelloy® B-2
Hastelloy B-2 is a solid solution strengthened, nickel-molybdenum alloy. It is engineered specifically for significant resistance to reducing environments like hydrogen chloride gas, and sulfuric, acetic, and phosphoric acids. It is the premier choice for handling pure hydrochloric acid (HCl).
- Common Forms: Plate, Sheet, Bar, Pipe, Fittings.
- Key Feature: Resistant to Hydrochloric Acid at all concentrations and temperatures.
- Limitation: Poor corrosion resistance in oxidizing environments.
- Structure: Low carbon and silicon to prevent grain-boundary precipitation.
If your process involves pure Hydrochloric Acid (HCl), Hastelloy B-2 is the superior choice. Unlike the C-series alloys, B-2 relies on a high Molybdenum content (~28%) to withstand aggressive reducing acids. It effectively resists the formation of grain-boundary carbide precipitates in the weld heat-affected zone, making it suitable for use in the as-welded condition.
Hydrochloric Acid Specialist
Excellent resistance to HCl gas and acid at all concentrations and temperatures, a capability matched by very few metals (like Tantalum).
Reducing Environments
Superior performance in pure sulfuric acid, acetic acid, and phosphoric acid where oxidizing contaminants are absent.
SCC Resistance
Like other high-nickel alloys, it offers excellent resistance to chloride-induced stress corrosion cracking (SCC).
| Element | Content (%) |
|---|---|
| Nickel (Ni) | 65.0 min (Balance) |
| Molybdenum (Mo) | 26.0 - 30.0 |
| Iron (Fe) | 2.0 max |
| Chromium (Cr) | 1.0 max |
| Manganese (Mn) | 1.0 max |
| Carbon (C) | 0.02 max |
*Note: The extremely high Molybdenum content drives its reducing acid resistance.
| Product Form | ASTM / ASME Standards |
|---|---|
| Plate, Sheet, Strip | ASTM B333, ASME SB333 |
| Bar & Rod | ASTM B335, ASME SB335 |
| Pipe (Seamless & Welded) | ASTM B619, ASTM B622, ASME SB619/SB622 |
| Fittings | ASTM B366, ASME SB366 |
| Forgings | ASTM B564, ASME SB564 |
To safely contain and transport pure hydrochloric acid and other aggressive reducing agents, we supply Hastelloy B-2 in a comprehensive range of mill forms and piping components engineered for extreme chemical processing.
Plate & Sheet
Essential for fabricating heavy-duty chemical reactors, storage tanks, and heat exchangers handling pure HCl.
Pipe & Tube
Seamless and welded pipes designed to safely transport highly concentrated reducing acids without degrading.

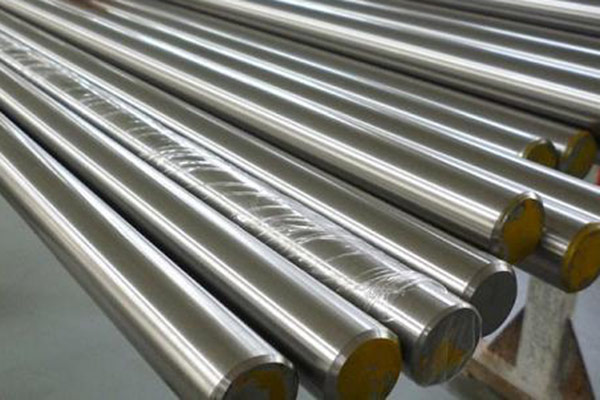

Bar & Rod
Machined into critical high-stress components like agitator shafts, pump internals, and specialized valve stems.
Pipe Fittings
Complete your acid-resistant piping networks with perfectly matched Hastelloy B-2 elbows, tees, and reducers.
Flanges
Weld neck, slip-on, and blind flanges ensuring leak-proof connections in hazardous, reducing chemical lines.
Fasteners
Corrosion-resistant bolts and nuts that maintain integrity in pure sulfuric and hydrochloric acid environments.
| Property | Typical Values (Room Temp) |
|---|---|
| Tensile Strength | 110 - 130 ksi (760 - 895 MPa) |
| Yield Strength (0.2% Offset) | 50 - 65 ksi (345 - 450 MPa) |
| Elongation | 40 - 60 % |
| Hardness (Rockwell B) | 85 - 100 HRB |
HCl Production
Equipment for the production and handling of hydrochloric acid.
Chemical Synthesis
Reactors for alkylation of ethylbenzene and production of acetic acid.
Pesticide Manufacturing
Handling reducing acid catalysts in the synthesis of agrochemicals.
Pharmaceuticals
Processes involving reducing environments where C-series alloys may corrode.
Need Hastelloy B-2 for Reducing Acids?
We supply high-quality Hastelloy B-2 bar, plate, and pipe. Contact our metallurgists to ensure this alloy is right for your specific chemical environment.
Get a Quick Quote
