엔지니어가 다음과 같은 질문을 할 때 how to choose Monel K-500 for sour gas service, they are usually not asking whether the alloy is “good.” They are asking a more difficult question: under what exact combination of H2S partial pressure, chlorides, load, hardness, fabrication route, and geometry does Monel K-500 remain a rational choice—and when does it stop being one? That is the right way to frame the decision. Monel K-500, or UNS N05500, is a precipitation-hardened nickel-copper alloy derived from 모넬 400, with aluminum and titanium additions that enable age hardening and deliver much higher strength and hardness than Monel 400.
From a materials engineering standpoint, Monel K-500 earns attention in sour gas service because it combines seawater resistance, good resistance to many chloride-bearing environments, and high mechanical strength. Special Metals also reports sour-gas resistance in laboratory exposure, noting that age-hardened sheet U-bend specimens showed no cracking after continuous immersion in saturated hydrogen sulfide solutions over a wide pH range in one test program. That sounds encouraging—but it is not a blanket license to specify the alloy everywhere H2S appears. Real field performance still depends on stress state, microstructure, hardness, galvanic condition, geometry, and compliance with the applicable sour-service materials standard for the project.
Why engineers consider Monel K-500 for sour gas service
The first reason is strength. Monel K-500 was designed to retain the corrosion behavior of Monel 400 while significantly increasing strength through precipitation of fine Ni3(Ti, Al) phases during aging. In practical terms, that makes it attractive for shafts, pump components, valve trim, 패스너, springs, and downhole or offshore hardware where both corrosion resistance and elevated strength are required.
The second reason is its nickel-copper base chemistry. In many marine and brine environments, Monel-family alloys show excellent resistance to flowing seawater and salt-contaminated systems. For sour gas service, that matters because many actual service environments are not just “H2S gas”; they are wet, chloride-containing, pressure-cycling systems with deposits, crevices, and intermittent oxygen ingress. A material that looks acceptable on a dry-gas datasheet can fail once condensed water and chlorides enter the picture. Monel K-500 is therefore often evaluated not as a generic corrosion alloy, but as a strength-plus-corrosion compromise.
Still, the phrase how to choose Monel K-500 for sour gas service should always trigger one caution: this is not a default pick for every sour environment. Precipitation-hardened alloys can become vulnerable if hardness and residual stress are not tightly controlled. The alloy’s advantage—high strength—also creates its biggest selection risk.
How to choose Monel K-500 for sour gas service: the real screening logic

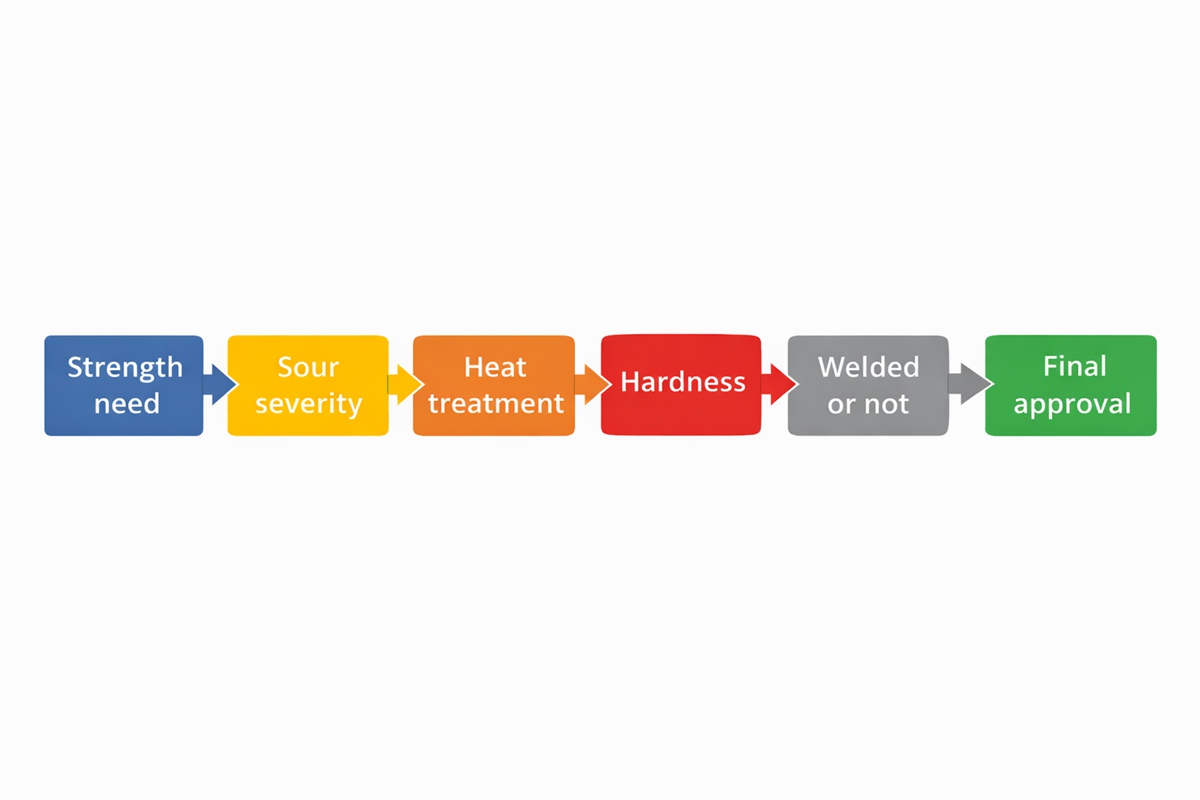

In practice, I recommend screening Monel K-500 through five questions.
1) Is strength genuinely required, or is Monel 400 enough?
If the component can meet load requirements with Monel 400, that option often deserves serious consideration because it avoids the additional metallurgical complexity of age hardening. Monel K-500 should be chosen when higher yield strength, wear resistance, or anti-galling behavior is needed and cannot be achieved economically by section increase or design modification. If the design does not need the added strength, choosing K-500 simply because it sounds more “premium” is poor engineering.
2) What is the actual sour severity?
Not all sour gas service is equally severe. The decisive variables are usually H2S partial pressure, pH, temperature, chloride level, water phase chemistry, and whether elemental sulfur or deposits may form. Wet H2S is a different problem from dry gas. Localized corrosion, sulfide stress cracking concerns, and hydrogen-assisted damage become more relevant when a water phase is present and stresses are high. This is exactly why how to choose Monel K-500 for sour gas service cannot be answered from alloy composition alone; it must be tied to the produced-fluid envelope and the governing standard used by the end user.
3) What is the final metallurgical condition?
This point is often underestimated. Monel K-500 gets its strength from controlled aging after solution treatment. The final microstructure—and therefore its hardness and cracking resistance—depends on whether the part was solution annealed correctly, aged correctly, cold worked before aging, or machined in a way that introduced excessive residual stress. Two components both labeled “K-500” may behave quite differently if one has a disciplined heat-treatment history and the other does not. Special Metals identifies the alloy as precipitation-hardened and specifically attributes the strength increase to Al and Ti additions with controlled thermal treatment.
4) Is the design sensitive to crevice, thread-root, or cold-worked stress concentration?
Fasteners, springs, and sharp-section components require more skepticism than thick, smoothly machined bodies. The geometry matters because local stress amplification can erase the comfort engineers derive from nominal stress calculations. In sour systems, thread roots, under-head fillets, seal grooves, and machining tears often become the real initiation sites.
5) Is the component welded, and if so, what is the post-weld condition?
Welded Monel K-500 deserves special scrutiny. Welding and repair can disturb the age-hardened structure, alter mechanical properties in the heat-affected zone, and complicate interpretation of sour-service acceptability. Filler metals are available for welding Monel alloys including K-500, but that does not automatically make every welded K-500 fabrication equally suitable for severe wet H2S duty. Welding procedure qualification, post-weld property verification, and project standard compliance are non-negotiable.
Selection table: when Monel K-500 is usually a strong candidate
| Selection factor | Why it matters in sour gas service | What to check before specifying Monel K-500 |
|---|---|---|
| Required strength | K-500 is usually selected for strength beyond Monel 400 capability | Confirm actual load case, safety factor, and whether section increase could avoid age-hardened alloy |
| H2S severity | Wet H2S drives cracking risk more than “sour” label alone | Review H2S partial pressure, free water, pH, temperature, and contaminants |
| Chlorides / brine | Chlorides shift corrosion mode and affect crevice behavior | Check produced water chemistry, stagnant zones, and crevice-prone details |
| 열처리 | Final aged condition controls hardness and microstructure | Require documented solution anneal + aging route, traceable lot records |
| Hardness control | Over-hard conditions increase sour-service concern | Verify hardness limit per project specification and actual inspection plan |
| Residual stress | Machining, cold work, threads, and fit-up can raise local susceptibility | Review cold work, stress concentration, surface finish, and shot peening strategy if used |
| Welding | Weld/HAZ response may not match wrought base metal assumptions | Approve WPS/PQR, filler selection, repair limits, and post-weld verification |
| Component geometry | Small sections and threads are less forgiving | Examine notch effects, root radii, and crevice locations |
| Alternative alloys | Some environments may justify different 니켈 합금 or duplex grades | Compare against Monel 400, Alloy 625, 725, or qualified duplex/super duplex options where relevant |
| Standards compliance | Sour-service suitability is standard- and project-specific | Check the exact edition of NACE MR0175 / ISO 15156 or client specification before release |
Common mistakes when choosing Monel K-500 for sour gas service
The most common mistake is treating Monel K-500 as “Monel 400, but stronger.” Mechanically that is directionally true. Metallurgically, it is incomplete. Once precipitation hardening enters the equation, hardness control and processing history become much more important.
The second mistake is reading one favorable sour-gas statement and skipping qualification. The laboratory evidence reported by Special Metals is useful, but field service introduces multi-axial stress, crevice chemistry, deposits, assembly damage, and repair history—none of which show up neatly in a brochure.
The third mistake is ignoring procurement language. If your PO says “Monel K-500” but says nothing about heat-treatment route, maximum hardness, cold-work restrictions, NACE compliance, or traceability, you have not really specified the material. You have only named an alloy family.
Final engineering judgment
그래서, how to choose Monel K-500 for sour gas service in one sentence? Choose it when you truly need higher strength than Monel 400 can provide, the sour environment has been defined in metallurgical—not marketing—terms, the final aged condition and hardness can be controlled, and the component geometry and fabrication route do not introduce unmanaged cracking risk.
That is the key message. Monel K-500 can be an excellent solution for selected sour gas service hardware, especially where high strength, marine corrosion resistance, and nonmagnetic behavior are all useful. But it is not a “safe by default” answer. Good selection comes from matching the alloy not only to the fluid, but also to the final condition of the part.
At 28Nickel, this is exactly where technical support should begin: with service chemistry, stress class, delivery condition, and fabrication route—not just a grade name on a quotation request.
관련 Q&A
1. Is Monel K-500 always NACE-compliant for sour gas service?
No. Sour-service acceptability depends on the governing project specification, the applicable edition of NACE MR0175 / ISO 15156, final hardness, product form, and processing history. “Alloy name only” is not enough for release.
2. What is the main difference between Monel 400 and Monel K-500 in sour service selection?
Monel K-500 offers much higher strength through precipitation hardening, while Monel 400 is metallurgically simpler. If the design does not require the extra strength, Monel 400 may be the more conservative choice.
3. Is welded Monel K-500 suitable for sour gas service?
It can be, but welded condition requires extra caution. Welding can change local properties and must be supported by qualified procedures, appropriate filler selection, and verification against the project’s sour-service requirements.
