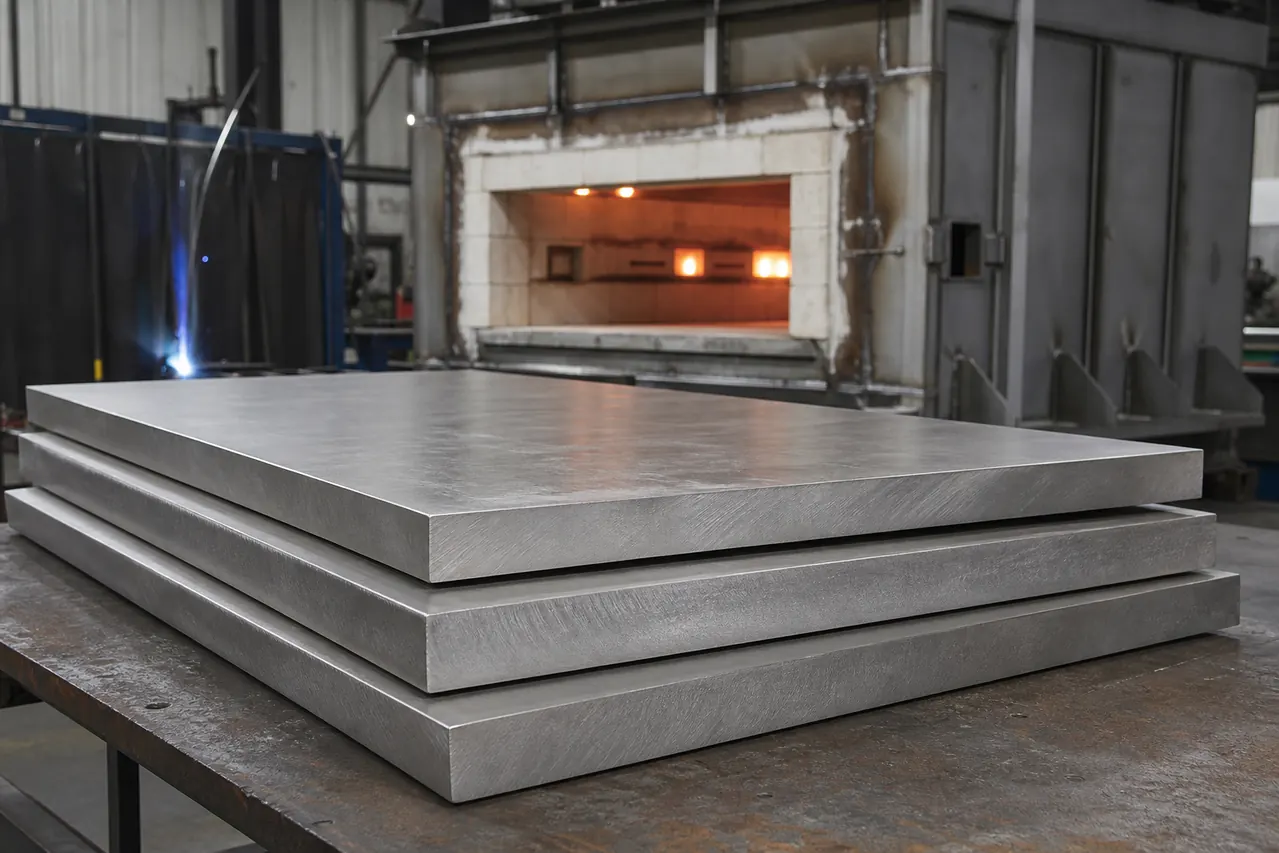

Inconel 601 plate for industrial furnace muffles is not a useful specification until the buyer connects the grade to a real operating envelope, a controlled product condition, and measurable acceptance criteria. For industrial furnace muffles, the important question is not whether Inconel 601 has a strong reputation. The question is whether the delivered plate, the fabrication route, and the full service cycle support the same engineering conclusion.
The service in this case combines repeated heating and cooling, oxidizing furnace gas, radiant heat, local hot spots, scale formation, and mechanical restraint. 601 plate is most persuasive when a muffle needs an oxidation-resistant hot face that can be formed and welded while retaining a stable protective scale through cycling. That statement is a selection rationale, not a guarantee of immunity. The design still has to separate maximum metal temperature from furnace set point and account for supports, expansion gaps, burner impingement, sulfur, carbon activity, and shutdown condensation.
For purchasing Inconel 601 plate for industrial furnace muffles, plate projects often fail commercially because the ordered rectangle does not include forming trim, weld preparation, nesting loss, or transport limits. The inquiry therefore needs thickness, width, length, flatness, edge condition, rolling allowance, and final cut plan; it also needs the ordered condition, certificate scope, test requirements, delivery schedule, and destination. When one item is left open, suppliers can quote materially different products under descriptions that look similar.
This guide is written for engineers, fabricators, maintenance teams, and industrial buyers. It explains where Inconel 601 earns its place, where its selection boundary lies, how to specify plate to ASTM B168, and how to review a quotation without confusing a mill certificate with proof of service suitability.
Contact 28Nickel for a project quotation with the grade, form, dimensions, quantity, service conditions, inspection scope, destination, and required delivery date.
Map the Complete Service Cycle Before Selecting Material
Material selection for Inconel 601 plate for industrial furnace muffles should use a timeline rather than one normal operating point. Startup, stable operation, process upset, cleaning, and shutdown can each create a different corrosion potential, temperature, mechanical load, or wetting condition. A process record that captures only nominal chemistry can miss the short stage that determines service life.
| Process stage | Material concern | Question for the design review |
|---|---|---|
| Cold startup | Moisture can condense before the muffle reaches a dry stable temperature. | Define purge practice and the time spent below the dew point. |
| Heat-up | Differential expansion can bow large plate areas or overload welds. | Review ramp rate, restraints, and expansion clearances. |
| Steady production | Oxidation, carburization, and local flame contact control long-term loss. | Map actual metal temperature and atmosphere at the hottest zones. |
| Shutdown | Scale can crack when cooling is rapid or uneven. | Confirm cooling practice and inspect recurring crack locations. |
| Cleaning | Aggressive mechanical cleaning can remove protective scale and thin the plate. | Specify accepted cleaning tools and minimum remaining thickness. |
The table is also a practical RFQ tool. The supplier does not need confidential process know-how, but the material review does need enough information to distinguish normal exposure from the worst credible combination. For industrial furnace muffles, that means documenting the range behind each phrase in the service summary: repeated heating and cooling, oxidizing furnace gas, radiant heat, local hot spots, scale formation, and mechanical restraint.
For industrial furnace muffles, separate bulk fluid temperature from actual Inconel 601 metal temperature. Heat transfer, insulation, deposits, poor flow, direct heat, and ambient cooling can move the metal above or below the fluid value. Also separate average chemistry from local chemistry around the ordered plate; low-flow zones, vapor boundaries, deposits, and drying surfaces can concentrate dilute species.
The most credible Inconel 601 recommendation includes a stopping rule. It is not selected only by peak temperature. Atmosphere chemistry, sulfur activity, carburizing potential, condensation during shutdown, and mechanical restraint can change the result. The design still has to separate maximum metal temperature from furnace set point and account for supports, expansion gaps, burner impingement, sulfur, carbon activity, and shutdown condensation. When the available data for industrial furnace muffles do not close those questions, the design authority should use plant history, a corrosion specialist, or representative testing before final approval.
What the Grade and ASTM Designation Must Prove
Inconel 601 is identified as UNS N06601 and is a nickel-chromium-iron alloy deliberately strengthened in oxidation performance by aluminum. For this article, the procurement standard is ASTM B168 and the ordered form is plate. The purchase order should repeat all three identity points because commercial grade names, UNS designations, and ASTM form standards serve different purposes.
ASTM compliance controls product requirements within the scope of the standard. It does not, by itself, approve Inconel 601 for industrial furnace muffles, calculate corrosion allowance, qualify a weld procedure, or prove remaining life. Those responsibilities stay with the project specification and design authority. The delivered condition should be stated as solution-annealed condition where required by the governing specification, with the ordered surface and plate identification preserved.
Nominal Chemistry Review
| Element | Nominal specification range | Engineering relevance |
|---|---|---|
| Nickel | 58.0-63.0% | Stable austenitic base and broad high-temperature corrosion resistance |
| Chromium | 21.0-25.0% | Supports oxidation resistance and protective scale formation |
| Aluminum | 1.0-1.7% | Helps build a tenacious oxide layer during hot service |
| Iron | Balance | Contributes to the alloy balance and hot fabrication behavior |
| Carbon | 0.10% max | Controlled for product quality and high-temperature behavior |
These ranges are a procurement-oriented summary for Inconel 601, not a substitute for the current edition of ASTM B168. Acceptance must use the values required by the purchase order and the actual mill certificate. The buyer should check that heat number, grade, UNS, chemistry, dimensions, condition, and test results all refer to the same delivered plate.
Chemistry explains why Inconel 601 behaves as it does, but microstructure and condition determine how that chemistry arrives in industrial furnace muffles. Heat treatment, cold work, grain structure, surface, and section size can influence response and fabrication. For this plate, do not accept an offer that leaves condition undecided after order placement.
Failure Modes to Address in Design and Inspection
A useful material article should say how a purchase can fail. In industrial furnace muffles, damage is rarely distributed perfectly evenly. It starts where chemistry concentrates, stress rises, flow changes, surfaces remain wet, temperature peaks, or inspection access is weakest. The following mechanisms turn the alloy discussion into locations and controls that can be put on drawings and inspection plans.
| Failure mechanism | Typical field signal | Engineering or procurement control |
|---|---|---|
| Cyclic oxidation | Flaking scale and progressive section loss near hot zones | Control atmosphere, metal temperature, thermal ramp, and surface contamination |
| Thermal distortion | Buckling, edge lifting, or weld loading | Provide expansion space, realistic support spacing, and forming tolerance |
| Carburization | Embrittlement or chemistry change beneath the surface | Review carbon potential and avoid assuming oxidation data cover carburizing gas |
| Weld distress | Cracking or local distortion at restrained seams | Use qualified procedures, balanced weld sequence, and suitable joint detail |
The mechanisms identified for industrial furnace muffles can interact. Local corrosion may reduce section and raise stress; vibration may damage a surface; deposits may change temperature and chemistry; fabrication contamination may create the first active site. The Inconel 601 plate decision therefore belongs with geometry, process control, cleaning, and maintenance.
Inspection should be risk-based, not evenly distributed for convenience. The article-specific emphasis is: For a new furnace, baseline thickness readings at burner-facing areas and support contact points make later maintenance decisions more defensible. For replacement work, compare the failure map with the original plate heat and operating history. That focus belongs in baseline records before service, so later readings can be compared with the same physical locations and methods.
What This Alloy Contributes to Reliability
The selection case for Inconel 601 plate for industrial furnace muffles rests on several different contributions rather than one headline property. 601 plate is most persuasive when a muffle needs an oxidation-resistant hot face that can be formed and welded while retaining a stable protective scale through cycling. The following points explain how the alloy’s metallurgy connects to the stated service.
Resistance to cyclic oxidation where equipment repeatedly heats and cools
Inconel 601 offers resistance to cyclic oxidation where equipment repeatedly heats and cools. In industrial furnace muffles, this supports the design by addressing part of the combined exposure: repeated heating and cooling, oxidizing furnace gas, radiant heat, local hot spots, scale formation, and mechanical restraint. This benefit matters only when the process and fabrication assumptions remain valid. The project should identify the exact location where this property is needed and the condition that would invalidate the assumption.
A protective scale that remains comparatively adherent during thermal cycling
Inconel 601 offers a protective scale that remains comparatively adherent during thermal cycling. In industrial furnace muffles, this supports the design by addressing part of the combined exposure: repeated heating and cooling, oxidizing furnace gas, radiant heat, local hot spots, scale formation, and mechanical restraint. The drawing should translate this benefit into geometry, condition, and inspection requirements. The project should identify the exact location where this property is needed and the condition that would invalidate the assumption.
Useful hot strength for furnace hardware that must retain geometry
Inconel 601 offers useful hot strength for furnace hardware that must retain geometry. In industrial furnace muffles, this supports the design by addressing part of the combined exposure: repeated heating and cooling, oxidizing furnace gas, radiant heat, local hot spots, scale formation, and mechanical restraint. A quotation should not claim this benefit without confirming grade identity and ordered condition. The project should identify the exact location where this property is needed and the condition that would invalidate the assumption.
Good fabrication response when clean nickel-alloy practice is maintained
Inconel 601 offers good fabrication response when clean nickel-alloy practice is maintained. In industrial furnace muffles, this supports the design by addressing part of the combined exposure: repeated heating and cooling, oxidizing furnace gas, radiant heat, local hot spots, scale formation, and mechanical restraint. Its practical value appears at the most severe local zone, not in a generic property table. The project should identify the exact location where this property is needed and the condition that would invalidate the assumption.
The selection boundary is equally important: It is not selected only by peak temperature. Atmosphere chemistry, sulfur activity, carburizing potential, condensation during shutdown, and mechanical restraint can change the result. The design still has to separate maximum metal temperature from furnace set point and account for supports, expansion gaps, burner impingement, sulfur, carbon activity, and shutdown condensation. This is why responsible technical writing distinguishes a defensible candidate from a universal recommendation.
Room-temperature tensile values and handbook corrosion summaries are useful for screening Inconel 601, but acceptance should use ASTM B168, project design values, and the heat-specific certificate. For industrial furnace muffles, corrosion behavior must be evaluated at representative concentration, temperature, contaminants, aeration, velocity, deposits, and stress.
Do Not Specify the Most Expensive Alloy by Default
A credible specification for industrial furnace muffles explains why Inconel 601 plate is preferred over alternatives in the same supplied form. The purpose is not to rank alloys from cheap to expensive; it is to identify the environmental or mechanical condition that changes the decision.
| Alternative in the same form | Where it may be viable | Why Inconel 601 may still be selected |
|---|---|---|
| Inconel 600 plate | Useful in many hot environments with high nickel content | 601 generally offers a stronger oxidation case because of aluminum |
| Incoloy 800H plate | Attractive where creep design and sustained load dominate | Atmosphere and cycling may favor 601 for an oxidation-focused muffle |
| Alloy 330 plate | Common furnace alloy for thermal cycling and carburizing exposure | Availability, atmosphere, and design stress should be compared directly |
| 310 stainless plate | Lower initial alloy cost in moderate furnace duty | May provide less margin at severe hot spots or demanding cycles |
When comparing Inconel 601 plate with these alternatives, use the same process envelope, design life, corrosion allowance, fabrication route, inspection plan, and delivery assumption. One quote may look lower because it assumes a different condition, looser tolerance, fewer tests, shorter usable dimensions, or a narrower service window.
The strongest decision statement for industrial furnace muffles is conditional: select Inconel 601 when the documented service and design require its combination of properties; use a lower-alloy option when verified plant history or representative data show adequate margin; use a more specialized alloy when the process falls outside the boundary described above.
Dimensional Details That Determine Usable Material
The product description should convert the engineering drawing into measurable supply terms. For Inconel 601 plate, that means thickness, width, length, flatness, edge condition, rolling allowance, and final cut plan. Large muffle panels need a cut plan that preserves rolling and weld allowance. Flatness before fabrication is useful, but the drawing should also define acceptable geometry after forming and stress from welded assembly.
| Dimension | What to state | Why it matters |
|---|---|---|
| Thickness | Nominal value, governing tolerance, minimum design basis | Thickness affects pressure, load, forming, and corrosion allowance |
| Width and length | Exact or minimum usable dimensions | Controls nesting, weld layout, rolling, and freight |
| Flatness | Standard tolerance or tighter project value | Affects fit-up, forming, and fabrication time |
| Edges | Mill or cut condition and cleanup allowance | Controls weld preparation and usable area |
| Orientation | Any rolling-direction or location requirement | May matter for forming and project traceability |
Tolerance for Inconel 601 plate should be tied to function. Tightening every dimension can add cost and lead time without improving reliability, while leaving a critical dimension open transfers risk to fabrication. Ask which dimensions govern fit, forming, machining, joining, or line setup for industrial furnace muffles before sending the inquiry.
A dimensional inspection report is especially useful when material crosses borders before fabrication. It allows the buyer to resolve a discrepancy before the Inconel 601 plate reaches a busy shop or remote site, where replacement time and handling are much more expensive.
Processing the Alloy Without Giving Away Corrosion Margin
Inconel 601 should be processed as a corrosion-critical nickel alloy, not as ordinary shop stock. The relevant route includes cutting, edge preparation, forming, rolling, welding, dimensional restoration, and final cleaning. Keep carbon-steel contamination away from the hot face. Forming sequence, bend radius, weld access, tack pattern, and final cleaning should be agreed before plate is cut because late changes can concentrate strain at the hottest location.
Cleanliness and Material Segregation
Use clean work surfaces and tools that will not embed free iron or carry sulfur, lead, zinc, incompatible copper contamination, chlorides, or unknown residues onto the Inconel 601 plate for industrial furnace muffles. Marking compounds, lubricants, cleaners, media, and temporary attachments should be approved for this alloy and service.
Form-Specific Processing
Fabrication of Inconel 601 plate for industrial furnace muffles should sequence cutting, forming, edge preparation, fit-up, and joining around the final geometry. Forming strain, bend radius, rolling direction where relevant, and trim allowance should be settled before nesting.
Large Inconel 601 plate areas in industrial furnace muffles need distortion control. Balanced joining sequence, temporary restraint designed for removal, realistic gaps, and repeatable dimensional references are more reliable than forcing misaligned plate into place.
Joining and Heat Input
Joining procedures for Inconel 601 in industrial furnace muffles should be qualified by the fabricator for section, joint design, position, consumable, shielding, heat input, interpass control, and required examination. Clean each pass as required and prevent arc strikes or temporary attachments outside the approved procedure.
Do not assume a visually acceptable joint has preserved corrosion or high-temperature performance. For industrial furnace muffles, joint geometry, residual stress, surface condition, dilution, heat tint, crevices, and access for final cleaning can matter as much as strength. The project specification should define post-join cleaning and acceptance.
Final Surface and Dimensional Release
Remove contamination and unacceptable discoloration from the Inconel 601 plate by an approved method that does not leave embedded abrasive or uncontrolled roughness. Verify the dimensions critical to industrial furnace muffles after final thermal and mechanical operations, because early measurements do not capture later distortion.
What the Certificate Proves and What It Does Not
Quality control for Inconel 601 plate for industrial furnace muffles should answer four separate questions: Is the material the ordered alloy? Is it the ordered plate and condition? Does it meet the specified dimensions and tests? Can every delivered item be traced to the evidence package? A pass in one category does not compensate for a gap in another.
| Evidence item | What to verify | What it establishes |
|---|---|---|
| Mill certificate | Heat number, grade, UNS, standard, chemistry, mechanical results, condition and dimensions | Confirms documented product compliance |
| PMI | Grade verification at agreed frequency and locations | Reduces material-mix risk but does not replace the certificate |
| Dimensional report | thickness mapping, width and length checks, flatness review, surface examination, heat-number transfer, and any specified ultrasonic examination | Confirms usable geometry before fabrication |
| Surface examination | Ordered acceptance criteria and defect disposition | Finds damage that chemistry results cannot reveal |
| Nondestructive examination | Method, coverage, calibration and acceptance where specified | Addresses internal or surface discontinuity risk |
| Traceability map | Link from heat and item marks to cut or installed location | Preserves evidence after processing |
| Packing record | Condition, protection, package marks and photographs | Supports transport and receiving control |
The mill certificate is the central material record, but it is not a corrosion test for industrial furnace muffles. It shows that a heat met the ordered product requirements. Service suitability comes from the material selection basis, design calculation, fabrication quality, and operating envelope.
PMI is a useful identity control for Inconel 601, especially after processing or in mixed-material shops. It does not prove every controlled element, heat-treatment condition, mechanical property, or corrosion response. The procedure for this plate should define instrument capability, calibration, surface preparation, frequency, and positive identification of each reading.
For dimensional and surface inspection, the article-specific priority is: For a new furnace, baseline thickness readings at burner-facing areas and support contact points make later maintenance decisions more defensible. For replacement work, compare the failure map with the original plate heat and operating history. In addition, the general plate inspection scope is thickness mapping, width and length checks, flatness review, surface examination, heat-number transfer, and any specified ultrasonic examination. Acceptance criteria should be written before inspection begins, including who may approve a repair or concession.
Third-party inspection of the Inconel 601 plate is most effective when hold points are defined in the purchase order. For industrial furnace muffles, likely points include certificate review, identity, dimensions, test witnessing where required, surface, marking, packing, and final document release. A late request can delay shipment without improving completed work.
Before releasing Inconel 601 plate for industrial furnace muffles, reconcile the offer, purchase order, certificate, physical marks, and inspection report. Resolve grade suffixes, ASTM B168 edition, dimensions, heat treatment, test exceptions, and quantity while the material is still identifiable and replaceable.
Availability, Yield, Packing and Delivered Cost
The price of Inconel 601 plate reflects alloy content, melting and processing route, size, condition, tolerance, order quantity, test scope, current availability, yield, packing, freight, and payment terms. A buyer should normalize those variables before treating one quotation as cheaper.
Article-specific commercial emphasis: The cheapest square-meter price can be misleading if narrower plate adds hot-face welds or if oversize plate requires costly transport. Compare delivered usable area, cutting yield, documentation, and replacement lead time. The comparison should also include the cost of clarification, inspection, fabrication yield, schedule exposure, and replacement if a deviation is found after delivery.
| Cost driver | What changes | Commercial effect |
|---|---|---|
| Alloy and condition | Grade chemistry, heat treatment and mechanical requirement | Defines the core production route |
| Dimensions | Size, tolerance and usable-length or area requirement | Changes mill yield and fabrication yield |
| Quantity | Total weight, item count and repeat potential | Affects campaign economics and minimum quantity |
| Inspection | Testing, witnessing, documents and special acceptance | Adds direct cost and schedule hold points |
| Processing | Cutting or other agreed preparation | Can reduce buyer setup but adds supplier work |
| Logistics | Package size, protection, route and delivery term | Changes handling, freight and damage risk |
Lead time for Inconel 601 plate should be split into material availability, production, testing, inspection release, document approval, packing, and transport to the destination. Ask which dates are committed and which are estimates; a short production promise with an undefined release stage may not protect the industrial furnace muffles schedule.
Packing and Transport
The packing concept for Inconel 601 plate intended for industrial furnace muffles is dry separators between plate faces, edge and corner protection, rigid pallet support, weather barrier, and marks visible without unpacking. Packages should keep heats and sizes identifiable, prevent contaminating contact, and allow safe unloading with the equipment available at destination.
For export of this Inconel 601 plate, agree package dimensions, gross and net weight, lifting points, moisture barrier, destination handling, and mark format before dispatch. Photograph material and closed packages. Receiving records should separate transport damage from the manufacturing condition needed for industrial furnace muffles.
Lifecycle cost is the more useful final measure for industrial furnace muffles. It includes purchase, fabrication, inspection, installation, downtime, maintenance access, monitoring, replacement interval, and consequence of failure. Choosing Inconel 601 is justified only when it improves that equation under the documented service conditions.
Project Controls That Prevent Late Material Surprises
The following sequence keeps the Inconel 601 plate decision connected to the equipment rather than allowing technical and commercial reviews to drift apart. Each gate should produce a short record before the next commitment is made.
- Freeze the service envelope: record normal, maximum, upset, cleaning, and shutdown conditions for industrial furnace muffles, including chemistry, temperature, pressure, load, velocity, deposits, and duration.
- Approve the material basis: confirm why Inconel 601 and UNS N06601 are selected, what alternatives were reviewed, and what condition would trigger reselection.
- Translate the drawing: define thickness, width, length, flatness, edge condition, rolling allowance, and final cut plan, quantity, allowance, surface, condition, fabrication route, and delivery units.
- Set the evidence package: state ASTM B168, certificate, dimensional report, PMI, examination, traceability, marking, and third-party hold points where required.
- Issue a comparable RFQ: provide the same technical and commercial assumptions to every supplier and require written identification of deviations.
- Release and receive: reconcile documents with physical marks before fabrication, inspect shipping condition, quarantine discrepancies, and preserve traceability into the final equipment.
For repeat orders, update the specification with actual fabrication yield, inspection findings, service history, and logistics performance. The second Inconel 601 plate purchase should be more precise than the first, not merely a copy of an old purchase order.
RFQ Checklist
A concise but complete RFQ for Inconel 601 plate produces more comparable quotations than a long inquiry assembled from unrelated specifications. The following list can be attached to the industrial furnace muffles drawing and adjusted to the project’s code and owner requirements.
- Material: Inconel 601 / UNS N06601
- Product form: plate
- Standard: ASTM B168 plus any project or code requirement
- Dimensions and tolerance: thickness, width, length, flatness, edge condition, rolling allowance, and final cut plan
- Quantity: item or coil count, estimated weight, production allowance and required spares
- Condition and surface: solution-annealed condition where required by the governing specification, with the ordered surface and plate identification preserved
- Application: industrial furnace muffles
- Service envelope: repeated heating and cooling, oxidizing furnace gas, radiant heat, local hot spots, scale formation, and mechanical restraint
- Fabrication route: cutting, edge preparation, forming, rolling, welding, dimensional restoration, and final cleaning
- Inspection: certificate, PMI, dimensions, surface, nondestructive examination and witnessing as required
- Traceability and marking: heat, item, cut-location and final document linkage
- Packing: dry separators between plate faces, edge and corner protection, rigid pallet support, weather barrier, and marks visible without unpacking
- Commercial data: delivery term, destination, required arrival date, quotation validity and payment terms
- Deviation rule: supplier must list every exception before order acceptance
Add the article-specific notes directly: dimensional focus – Large muffle panels need a cut plan that preserves rolling and weld allowance. Flatness before fabrication is useful, but the drawing should also define acceptable geometry after forming and stress from welded assembly. Fabrication focus – Keep carbon-steel contamination away from the hot face. Forming sequence, bend radius, weld access, tack pattern, and final cleaning should be agreed before plate is cut because late changes can concentrate strain at the hottest location. Inspection focus – For a new furnace, baseline thickness readings at burner-facing areas and support contact points make later maintenance decisions more defensible. For replacement work, compare the failure map with the original plate heat and operating history.
Ask suppliers to quote the requested Inconel 601 basis first and place alternatives on separate lines. Clarify whether plate weights are theoretical or actual, whether dimensions are exact or approximate, and whether delivery means mill completion or arrival at the project destination.
Technical Buyer FAQ
Is Inconel 601 automatically suitable for industrial furnace muffles?
No. It is a defensible candidate because 601 plate is most persuasive when a muffle needs an oxidation-resistant hot face that can be formed and welded while retaining a stable protective scale through cycling. Final approval still requires the complete service envelope, design basis, fabrication plan, and project authority review. The design still has to separate maximum metal temperature from furnace set point and account for supports, expansion gaps, burner impingement, sulfur, carbon activity, and shutdown condensation.
What ASTM standard applies to this plate?
This procurement guide uses ASTM B168 for Inconel 601 plate. Confirm the current edition, any ASME or owner requirement, and the exact product condition on the purchase order.
What should appear on the mill certificate?
For Inconel 601 plate intended for industrial furnace muffles, check heat number, UNS N06601, ASTM B168, chemistry, mechanical results required by the order, condition, dimensions, quantity, and traceable identification. Project-specific test results should be indexed clearly.
Does PMI replace the mill certificate?
No. For Inconel 601 plate used in industrial furnace muffles, PMI is an identity check within the capability of the method and instrument. It does not replace heat-specific chemistry, heat-treatment records, mechanical tests, dimensions, or full traceability. Use PMI and the certificate together.
Which dimensions are essential for plate?
For Inconel 601 used in industrial furnace muffles, state thickness, width, length, flatness, edge condition, rolling allowance, and final cut plan. Define which tolerances follow ASTM B168, which are tighter, how they will be measured, and how much fabrication allowance is included.
What fabrication issue deserves the most attention?
For this application: Keep carbon-steel contamination away from the hot face. Forming sequence, bend radius, weld access, tack pattern, and final cleaning should be agreed before plate is cut because late changes can concentrate strain at the hottest location. More generally, protect the nickel-alloy surface, control strain and heat input, use qualified procedures, and verify final geometry after all thermal and mechanical operations.
Where should baseline inspection be concentrated?
Use the service damage map rather than equal spacing. For a new furnace, baseline thickness readings at burner-facing areas and support contact points make later maintenance decisions more defensible. For replacement work, compare the failure map with the original plate heat and operating history. Keep permanent location references so future readings are comparable.
Why can quotations differ so much for the same grade?
Quotes may assume different size, tolerance, condition, quantity, testing, usable yield, production route, packing, and delivery. The cheapest square-meter price can be misleading if narrower plate adds hot-face welds or if oversize plate requires costly transport. Compare delivered usable area, cutting yield, documentation, and replacement lead time. Normalize those assumptions before comparing unit price.
What information should accompany a request for Inconel 601 plate for industrial furnace muffles?
For Inconel 601 plate for industrial furnace muffles, send Inconel 601, UNS N06601, ASTM B168, complete plate dimensions, quantity, condition, service data, fabrication route, inspection and document requirements, destination, delivery term, and required arrival date. Include drawings when allowances are difficult to describe in text.
Final Procurement Position on Inconel 601 Plate
Inconel 601 plate for industrial furnace muffles is a credible specification when the order connects UNS N06601, ASTM B168, the full service cycle, measurable dimensions, the correct condition, controlled fabrication, targeted inspection, and traceability. The technical case is strongest when it states both why the alloy is selected and what condition would require the decision to be reviewed.
For industrial furnace muffles, begin with the process and failure map, not a stock list. Then use the drawing and fabrication plan to define the exact plate. Compare suppliers on compliant usable material, evidence, schedule, packing, and lifecycle consequence rather than on price per kilogram alone.
For Inconel 601 plate for industrial furnace muffles, 28Nickel supplies nickel alloy plate, pipe, bar, and coil for international industrial projects. Send the material specification, dimensions, quantity, application data, inspection scope, delivery destination, and schedule for a technical and commercial review.
