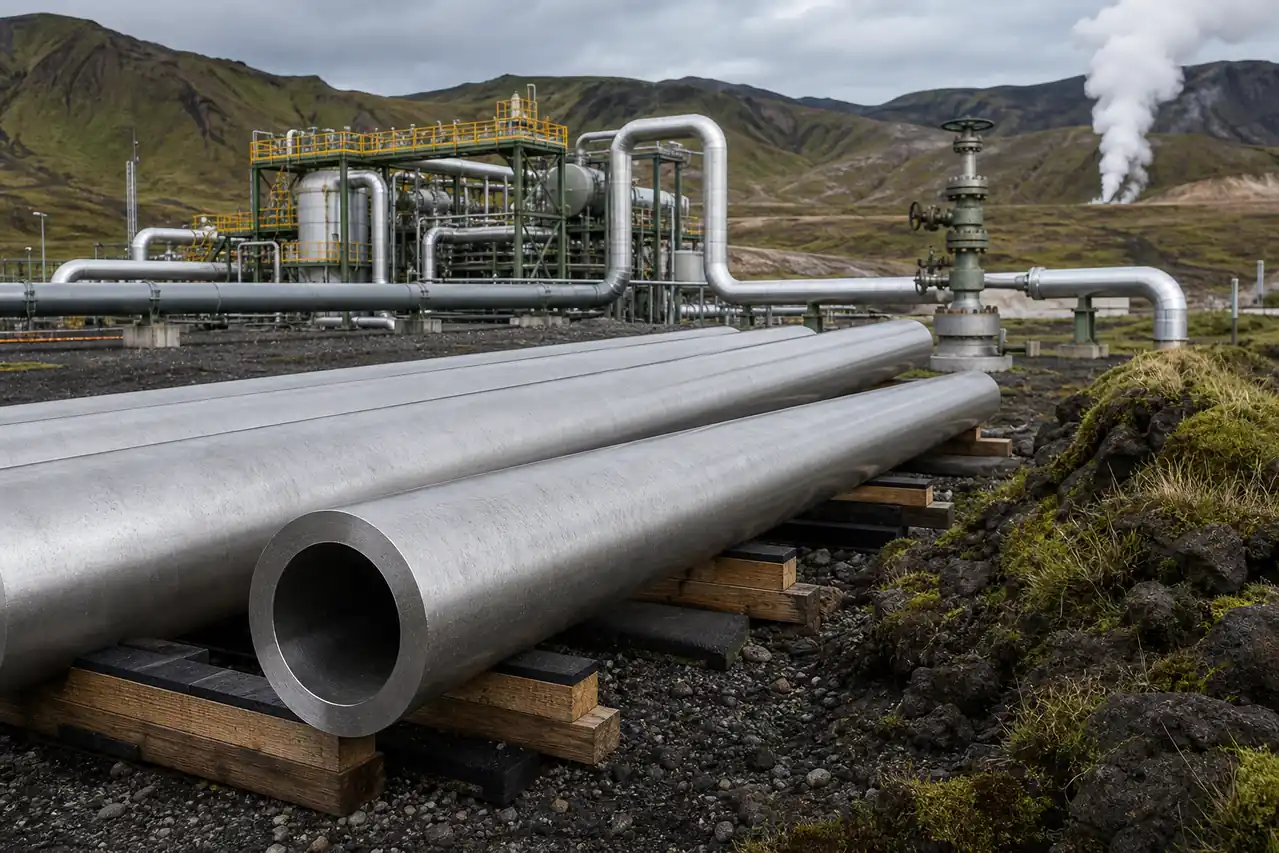

Inconel 625 pipe for geothermal brine injection lines is not a useful specification until the buyer connects the grade to a real operating envelope, a controlled product condition, and measurable acceptance criteria. For geothermal brine injection lines, the important question is not whether Inconel 625 has a strong reputation. The question is whether the delivered pipe, the fabrication route, and the full service cycle support the same engineering conclusion.
The service in this case combines hot chloride brine, carbon dioxide, hydrogen sulfide, oxygen ingress, pressure cycling, mineral scale, cleaning chemicals, and shutdown stagnation. 625 pipe is a serious candidate where geothermal injection combines chloride corrosion with mechanical demand, pressure cycles, and uncertain chemistry during startup or maintenance. That statement is a selection rationale, not a guarantee of immunity. Selection should use a current brine analysis and credible upset envelope. Chlorides alone do not define risk; pH, temperature, dissolved gas, oxygen entry, scaling tendency, flow velocity, solids, and acid cleaning can change the controlling mechanism.
For purchasing Inconel 625 pipe for geothermal brine injection lines, pipe orders become expensive when nominal size is supplied without a clear wall, tolerance, end condition, or usable-length requirement. The inquiry therefore needs outside diameter, wall thickness, ordered length, straightness, end condition, ovality, and quantity by size; it also needs the ordered condition, certificate scope, test requirements, delivery schedule, and destination. When one item is left open, suppliers can quote materially different products under descriptions that look similar.
This guide is written for engineers, fabricators, maintenance teams, and industrial buyers. It explains where Inconel 625 earns its place, where its selection boundary lies, how to specify pipe to ASTM B444, and how to review a quotation without confusing a mill certificate with proof of service suitability.
Contact 28Nickel for a project quotation with the grade, form, dimensions, quantity, service conditions, inspection scope, destination, and required delivery date.
Material Identity, UNS Designation and ASTM Control
Inconel 625 is identified as UNS N06625 and is a nickel-chromium-molybdenum-niobium alloy combining corrosion resistance with substantial mechanical strength. For this article, the procurement standard is ASTM B444 and the ordered form is pipe. The purchase order should repeat all three identity points because commercial grade names, UNS designations, and ASTM form standards serve different purposes.
ASTM compliance controls product requirements within the scope of the standard. It does not, by itself, approve Inconel 625 for geothermal brine injection lines, calculate corrosion allowance, qualify a weld procedure, or prove remaining life. Those responsibilities stay with the project specification and design authority. The delivered condition should be stated as the specified seamless pipe condition with heat treatment, surface, dimensional tolerance, and test status stated on the certificate.
Nominal Chemistry Review
| Element | Nominal specification range | Engineering relevance |
|---|---|---|
| Nickel | 58.0% min | Base for broad corrosion resistance and a stable austenitic structure |
| Chromium | 20.0-23.0% | Supports oxidation and corrosion resistance |
| Molybdenum | 8.0-10.0% | Improves pitting, crevice, and reducing-acid resistance |
| Niobium plus tantalum | 3.15-4.15% | Provides solid-solution strengthening with molybdenum |
| Iron | 5.0% max | Controlled residual major element |
These ranges are a procurement-oriented summary for Inconel 625, not a substitute for the current edition of ASTM B444. Acceptance must use the values required by the purchase order and the actual mill certificate. The buyer should check that heat number, grade, UNS, chemistry, dimensions, condition, and test results all refer to the same delivered pipe.
Chemistry explains why Inconel 625 behaves as it does, but microstructure and condition determine how that chemistry arrives in geothermal brine injection lines. Heat treatment, cold work, grain structure, surface, and section size can influence response and fabrication. For this pipe, do not accept an offer that leaves condition undecided after order placement.
Connect Alloy Metallurgy to the Service Problem
The selection case for Inconel 625 pipe for geothermal brine injection lines rests on several different contributions rather than one headline property. 625 pipe is a serious candidate where geothermal injection combines chloride corrosion with mechanical demand, pressure cycles, and uncertain chemistry during startup or maintenance. The following points explain how the alloy’s metallurgy connects to the stated service.
Resistance to chloride-bearing brines and many mixed process waters
Inconel 625 offers resistance to chloride-bearing brines and many mixed process waters. In geothermal brine injection lines, this supports the design by addressing part of the combined exposure: hot chloride brine, carbon dioxide, hydrogen sulfide, oxygen ingress, pressure cycling, mineral scale, cleaning chemicals, and shutdown stagnation. The drawing should translate this benefit into geometry, condition, and inspection requirements. The project should identify the exact location where this property is needed and the condition that would invalidate the assumption.
High strength without relying on a precipitation-hardening purchase condition
Inconel 625 offers high strength without relying on a precipitation-hardening purchase condition. In geothermal brine injection lines, this supports the design by addressing part of the combined exposure: hot chloride brine, carbon dioxide, hydrogen sulfide, oxygen ingress, pressure cycling, mineral scale, cleaning chemicals, and shutdown stagnation. A quotation should not claim this benefit without confirming grade identity and ordered condition. The project should identify the exact location where this property is needed and the condition that would invalidate the assumption.
Good resistance to pitting, crevice corrosion, and chloride stress-corrosion cracking
Inconel 625 offers good resistance to pitting, crevice corrosion, and chloride stress-corrosion cracking. In geothermal brine injection lines, this supports the design by addressing part of the combined exposure: hot chloride brine, carbon dioxide, hydrogen sulfide, oxygen ingress, pressure cycling, mineral scale, cleaning chemicals, and shutdown stagnation. Its practical value appears at the most severe local zone, not in a generic property table. The project should identify the exact location where this property is needed and the condition that would invalidate the assumption.
Wide use in offshore, geothermal, and chemical process equipment
Inconel 625 offers wide use in offshore, geothermal, and chemical process equipment. In geothermal brine injection lines, this supports the design by addressing part of the combined exposure: hot chloride brine, carbon dioxide, hydrogen sulfide, oxygen ingress, pressure cycling, mineral scale, cleaning chemicals, and shutdown stagnation. This benefit matters only when the process and fabrication assumptions remain valid. The project should identify the exact location where this property is needed and the condition that would invalidate the assumption.
The selection boundary is equally important: 625 is robust but not invulnerable. Geothermal chemistry can include chlorides, sulfides, carbon dioxide, oxygen ingress, scaling species, and cleaning chemicals that require a complete review. Selection should use a current brine analysis and credible upset envelope. Chlorides alone do not define risk; pH, temperature, dissolved gas, oxygen entry, scaling tendency, flow velocity, solids, and acid cleaning can change the controlling mechanism. This is why responsible technical writing distinguishes a defensible candidate from a universal recommendation.
Room-temperature tensile values and handbook corrosion summaries are useful for screening Inconel 625, but acceptance should use ASTM B444, project design values, and the heat-specific certificate. For geothermal brine injection lines, corrosion behavior must be evaluated at representative concentration, temperature, contaminants, aeration, velocity, deposits, and stress.
Build the Material Case Around the Whole Process Cycle
Material selection for Inconel 625 pipe for geothermal brine injection lines should use a timeline rather than one normal operating point. Startup, stable operation, process upset, cleaning, and shutdown can each create a different corrosion potential, temperature, mechanical load, or wetting condition. A process record that captures only nominal chemistry can miss the short stage that determines service life.
| Process stage | Material concern | Question for the design review |
|---|---|---|
| Well startup | Oxygenated commissioning water may differ from production brine. | Define flush water and time to reach reducing conditions. |
| Stable injection | Temperature, gas content, velocity, and scale determine wall exposure. | Use seasonal and well-to-well chemistry ranges. |
| Pressure cycling | Pump trips and flow changes impose fatigue and support loads. | Record cycle frequency and pressure transient. |
| Scale removal | Acid cleaning creates a temporary chemical service. | Review cleaner concentration, temperature, inhibitors, and residuals. |
| Shutdown | Stagnant brine can cool, aerate, and concentrate beneath scale. | Specify draining, preservation, or controlled recirculation. |
The table is also a practical RFQ tool. The supplier does not need confidential process know-how, but the material review does need enough information to distinguish normal exposure from the worst credible combination. For geothermal brine injection lines, that means documenting the range behind each phrase in the service summary: hot chloride brine, carbon dioxide, hydrogen sulfide, oxygen ingress, pressure cycling, mineral scale, cleaning chemicals, and shutdown stagnation.
For geothermal brine injection lines, separate bulk fluid temperature from actual Inconel 625 metal temperature. Heat transfer, insulation, deposits, poor flow, direct heat, and ambient cooling can move the metal above or below the fluid value. Also separate average chemistry from local chemistry around the ordered pipe; low-flow zones, vapor boundaries, deposits, and drying surfaces can concentrate dilute species.
The most credible Inconel 625 recommendation includes a stopping rule. 625 is robust but not invulnerable. Geothermal chemistry can include chlorides, sulfides, carbon dioxide, oxygen ingress, scaling species, and cleaning chemicals that require a complete review. Selection should use a current brine analysis and credible upset envelope. Chlorides alone do not define risk; pH, temperature, dissolved gas, oxygen entry, scaling tendency, flow velocity, solids, and acid cleaning can change the controlling mechanism. When the available data for geothermal brine injection lines do not close those questions, the design authority should use plant history, a corrosion specialist, or representative testing before final approval.
How This Service Can Defeat an Otherwise Good Alloy
A useful material article should say how a purchase can fail. In geothermal brine injection lines, damage is rarely distributed perfectly evenly. It starts where chemistry concentrates, stress rises, flow changes, surfaces remain wet, temperature peaks, or inspection access is weakest. The following mechanisms turn the alloy discussion into locations and controls that can be put on drawings and inspection plans.
| Failure mechanism | Typical field signal | Engineering or procurement control |
|---|---|---|
| Pitting and crevice corrosion | Deep local attack beneath deposits or shielded contacts | Control oxygen ingress, scale, chloride chemistry, and geometry |
| Under-deposit corrosion | Loss beneath mineral scale despite acceptable bulk chemistry | Monitor scale composition and removal interval |
| Erosion-corrosion | Accelerated loss at high velocity or solids impact | Review velocity, particles, direction changes, and local wall |
| Corrosion fatigue | Cracks under combined cyclic stress and brine exposure | Control pressure transients, supports, surface condition, and inspection |
The mechanisms identified for geothermal brine injection lines can interact. Local corrosion may reduce section and raise stress; vibration may damage a surface; deposits may change temperature and chemistry; fabrication contamination may create the first active site. The Inconel 625 pipe decision therefore belongs with geometry, process control, cleaning, and maintenance.
Inspection should be risk-based, not evenly distributed for convenience. The article-specific emphasis is: Baseline wall mapping is most valuable at pump discharge, direction changes, injection points, support contacts, low points, and known scale zones. Test records, PMI, and heat traceability should link each length to the line map. That focus belongs in baseline records before service, so later readings can be compared with the same physical locations and methods.
Selection Tradeoffs Against Common Alternatives
A credible specification for geothermal brine injection lines explains why Inconel 625 pipe is preferred over alternatives in the same supplied form. The purpose is not to rank alloys from cheap to expensive; it is to identify the environmental or mechanical condition that changes the decision.
| Alternative in the same form | Where it may be viable | Why Inconel 625 may still be selected |
|---|---|---|
| Duplex stainless pipe | Often cost-effective in controlled geothermal brine | Temperature, oxygen, chlorides, and sour chemistry may reduce margin |
| Titanium pipe | Excellent in many oxidizing chloride waters | Reducing conditions, hydrogen risk, fabrication, and cost require separate review |
| Hastelloy C276 pipe | Very broad severe chemical resistance | 625 may offer a better strength and cost balance in selected brines |
| Incoloy 825 pipe | Useful in many acid and chloride services | 625 can provide higher mechanical margin for demanding injection duty |
When comparing Inconel 625 pipe with these alternatives, use the same process envelope, design life, corrosion allowance, fabrication route, inspection plan, and delivery assumption. One quote may look lower because it assumes a different condition, looser tolerance, fewer tests, shorter usable dimensions, or a narrower service window.
The strongest decision statement for geothermal brine injection lines is conditional: select Inconel 625 when the documented service and design require its combination of properties; use a lower-alloy option when verified plant history or representative data show adequate margin; use a more specialized alloy when the process falls outside the boundary described above.
Build an Evidence Package That Survives Final Inspection
Quality control for Inconel 625 pipe for geothermal brine injection lines should answer four separate questions: Is the material the ordered alloy? Is it the ordered pipe and condition? Does it meet the specified dimensions and tests? Can every delivered item be traced to the evidence package? A pass in one category does not compensate for a gap in another.
| Evidence item | What to verify | What it establishes |
|---|---|---|
| Mill certificate | Heat number, grade, UNS, standard, chemistry, mechanical results, condition and dimensions | Confirms documented product compliance |
| PMI | Grade verification at agreed frequency and locations | Reduces material-mix risk but does not replace the certificate |
| Dimensional report | outside diameter and wall checks, straightness, end review, surface examination, heat-number traceability, hydrostatic or nondestructive test records as ordered | Confirms usable geometry before fabrication |
| Surface examination | Ordered acceptance criteria and defect disposition | Finds damage that chemistry results cannot reveal |
| Nondestructive examination | Method, coverage, calibration and acceptance where specified | Addresses internal or surface discontinuity risk |
| Traceability map | Link from heat and item marks to cut or installed location | Preserves evidence after processing |
| Packing record | Condition, protection, package marks and photographs | Supports transport and receiving control |
The mill certificate is the central material record, but it is not a corrosion test for geothermal brine injection lines. It shows that a heat met the ordered product requirements. Service suitability comes from the material selection basis, design calculation, fabrication quality, and operating envelope.
PMI is a useful identity control for Inconel 625, especially after processing or in mixed-material shops. It does not prove every controlled element, heat-treatment condition, mechanical property, or corrosion response. The procedure for this pipe should define instrument capability, calibration, surface preparation, frequency, and positive identification of each reading.
For dimensional and surface inspection, the article-specific priority is: Baseline wall mapping is most valuable at pump discharge, direction changes, injection points, support contacts, low points, and known scale zones. Test records, PMI, and heat traceability should link each length to the line map. In addition, the general pipe inspection scope is outside diameter and wall checks, straightness, end review, surface examination, heat-number traceability, hydrostatic or nondestructive test records as ordered. Acceptance criteria should be written before inspection begins, including who may approve a repair or concession.
Third-party inspection of the Inconel 625 pipe is most effective when hold points are defined in the purchase order. For geothermal brine injection lines, likely points include certificate review, identity, dimensions, test witnessing where required, surface, marking, packing, and final document release. A late request can delay shipment without improving completed work.
Before releasing Inconel 625 pipe for geothermal brine injection lines, reconcile the offer, purchase order, certificate, physical marks, and inspection report. Resolve grade suffixes, ASTM B444 edition, dimensions, heat treatment, test exceptions, and quantity while the material is still identifiable and replaceable.
What Buyers Must State Beyond Nominal Size
The product description should convert the engineering drawing into measurable supply terms. For Inconel 625 pipe, that means outside diameter, wall thickness, ordered length, straightness, end condition, ovality, and quantity by size. Order by actual outside diameter, wall, minimum design wall, length, end condition, route plan, and pressure basis. Injection lines also need support loads, thermal movement, and erosion allowance at high-energy zones.
| Dimension | What to state | Why it matters |
|---|---|---|
| Outside diameter | Actual value and governing tolerance | Controls fit, support, and connection geometry |
| Wall thickness | Nominal and minimum design requirement | Controls pressure section and corrosion allowance |
| Length | Random, fixed, or cut plan | Controls site weld count and usable yield |
| Straightness and ovality | Standard or project-specific value | Affects alignment, bending, and installation |
| Ends | Square cut, prepared, or machining allowance | Controls fit-up and final minimum wall |
Tolerance for Inconel 625 pipe should be tied to function. Tightening every dimension can add cost and lead time without improving reliability, while leaving a critical dimension open transfers risk to fabrication. Ask which dimensions govern fit, forming, machining, joining, or line setup for geothermal brine injection lines before sending the inquiry.
A dimensional inspection report is especially useful when material crosses borders before fabrication. It allows the buyer to resolve a discrepancy before the Inconel 625 pipe reaches a busy shop or remote site, where replacement time and handling are much more expensive.
Fabrication Controls That Protect Material Performance
Inconel 625 should be processed as a corrosion-critical nickel alloy, not as ordinary shop stock. The relevant route includes cutting, bending where approved, end preparation, welding, support planning, cleaning, and pressure-test coordination. Maintain a clean bore, qualified weld procedures, controlled bending, smooth transitions, and support geometry that avoids fretting. Acid-cleaning compatibility should be approved before the first cleaning campaign.
Cleanliness and Material Segregation
Use clean work surfaces and tools that will not embed free iron or carry sulfur, lead, zinc, incompatible copper contamination, chlorides, or unknown residues onto the Inconel 625 pipe for geothermal brine injection lines. Marking compounds, lubricants, cleaners, media, and temporary attachments should be approved for this alloy and service.
Form-Specific Processing
Pipe fabrication should protect the internal surface and preserve minimum wall at bends, cut ends, and prepared joints. Route geometry should permit drainage, thermal movement, inspection, and replacement.
Internal cleanliness matters because debris, iron contamination, or chemical residue can create the first localized attack. Cap clean pipe between operations and verify the bore before installation.
Joining and Heat Input
Joining procedures for Inconel 625 in geothermal brine injection lines should be qualified by the fabricator for section, joint design, position, consumable, shielding, heat input, interpass control, and required examination. Clean each pass as required and prevent arc strikes or temporary attachments outside the approved procedure.
Do not assume a visually acceptable joint has preserved corrosion or high-temperature performance. For geothermal brine injection lines, joint geometry, residual stress, surface condition, dilution, heat tint, crevices, and access for final cleaning can matter as much as strength. The project specification should define post-join cleaning and acceptance.
Final Surface and Dimensional Release
Remove contamination and unacceptable discoloration from the Inconel 625 pipe by an approved method that does not leave embedded abrasive or uncontrolled roughness. Verify the dimensions critical to geothermal brine injection lines after final thermal and mechanical operations, because early measurements do not capture later distortion.
Why Two Technically Similar Quotes Can Carry Different Risk
The price of Inconel 625 pipe reflects alloy content, melting and processing route, size, condition, tolerance, order quantity, test scope, current availability, yield, packing, freight, and payment terms. A buyer should normalize those variables before treating one quotation as cheaper.
Article-specific commercial emphasis: Commercial comparison should include usable length, testing, corrosion allowance, installation support, expected scale-cleaning frequency, and downtime risk. Pipe price is only one part of injection-line lifecycle cost. The comparison should also include the cost of clarification, inspection, fabrication yield, schedule exposure, and replacement if a deviation is found after delivery.
| Cost driver | What changes | Commercial effect |
|---|---|---|
| Alloy and condition | Grade chemistry, heat treatment and mechanical requirement | Defines the core production route |
| Dimensions | Size, tolerance and usable-length or area requirement | Changes mill yield and fabrication yield |
| Quantity | Total weight, item count and repeat potential | Affects campaign economics and minimum quantity |
| Inspection | Testing, witnessing, documents and special acceptance | Adds direct cost and schedule hold points |
| Processing | Cutting or other agreed preparation | Can reduce buyer setup but adds supplier work |
| Logistics | Package size, protection, route and delivery term | Changes handling, freight and damage risk |
Lead time for Inconel 625 pipe should be split into material availability, production, testing, inspection release, document approval, packing, and transport to the destination. Ask which dates are committed and which are estimates; a short production promise with an undefined release stage may not protect the geothermal brine injection lines schedule.
Packing and Transport
The packing concept for Inconel 625 pipe intended for geothermal brine injection lines is clean end protection, supported bundles, separation by heat and size, moisture control, lifting points, and rigid export support for long lengths. Packages should keep heats and sizes identifiable, prevent contaminating contact, and allow safe unloading with the equipment available at destination.
For export of this Inconel 625 pipe, agree package dimensions, gross and net weight, lifting points, moisture barrier, destination handling, and mark format before dispatch. Photograph material and closed packages. Receiving records should separate transport damage from the manufacturing condition needed for geothermal brine injection lines.
Lifecycle cost is the more useful final measure for geothermal brine injection lines. It includes purchase, fabrication, inspection, installation, downtime, maintenance access, monitoring, replacement interval, and consequence of failure. Choosing Inconel 625 is justified only when it improves that equation under the documented service conditions.
A Buyer and Engineer Review Sequence
The following sequence keeps the Inconel 625 pipe decision connected to the equipment rather than allowing technical and commercial reviews to drift apart. Each gate should produce a short record before the next commitment is made.
- Freeze the service envelope: record normal, maximum, upset, cleaning, and shutdown conditions for geothermal brine injection lines, including chemistry, temperature, pressure, load, velocity, deposits, and duration.
- Approve the material basis: confirm why Inconel 625 and UNS N06625 are selected, what alternatives were reviewed, and what condition would trigger reselection.
- Translate the drawing: define outside diameter, wall thickness, ordered length, straightness, end condition, ovality, and quantity by size, quantity, allowance, surface, condition, fabrication route, and delivery units.
- Set the evidence package: state ASTM B444, certificate, dimensional report, PMI, examination, traceability, marking, and third-party hold points where required.
- Issue a comparable RFQ: provide the same technical and commercial assumptions to every supplier and require written identification of deviations.
- Release and receive: reconcile documents with physical marks before fabrication, inspect shipping condition, quarantine discrepancies, and preserve traceability into the final equipment.
For repeat orders, update the specification with actual fabrication yield, inspection findings, service history, and logistics performance. The second Inconel 625 pipe purchase should be more precise than the first, not merely a copy of an old purchase order.
Final RFQ Review Before Sending to Suppliers
A concise but complete RFQ for Inconel 625 pipe produces more comparable quotations than a long inquiry assembled from unrelated specifications. The following list can be attached to the geothermal brine injection lines drawing and adjusted to the project’s code and owner requirements.
- Material: Inconel 625 / UNS N06625
- Product form: pipe
- Standard: ASTM B444 plus any project or code requirement
- Dimensions and tolerance: outside diameter, wall thickness, ordered length, straightness, end condition, ovality, and quantity by size
- Quantity: item or coil count, estimated weight, production allowance and required spares
- Condition and surface: the specified seamless pipe condition with heat treatment, surface, dimensional tolerance, and test status stated on the certificate
- Application: geothermal brine injection lines
- Service envelope: hot chloride brine, carbon dioxide, hydrogen sulfide, oxygen ingress, pressure cycling, mineral scale, cleaning chemicals, and shutdown stagnation
- Fabrication route: cutting, bending where approved, end preparation, welding, support planning, cleaning, and pressure-test coordination
- Inspection: certificate, PMI, dimensions, surface, nondestructive examination and witnessing as required
- Traceability and marking: heat, item, cut-location and final document linkage
- Packing: clean end protection, supported bundles, separation by heat and size, moisture control, lifting points, and rigid export support for long lengths
- Commercial data: delivery term, destination, required arrival date, quotation validity and payment terms
- Deviation rule: supplier must list every exception before order acceptance
Add the article-specific notes directly: dimensional focus – Order by actual outside diameter, wall, minimum design wall, length, end condition, route plan, and pressure basis. Injection lines also need support loads, thermal movement, and erosion allowance at high-energy zones. Fabrication focus – Maintain a clean bore, qualified weld procedures, controlled bending, smooth transitions, and support geometry that avoids fretting. Acid-cleaning compatibility should be approved before the first cleaning campaign. Inspection focus – Baseline wall mapping is most valuable at pump discharge, direction changes, injection points, support contacts, low points, and known scale zones. Test records, PMI, and heat traceability should link each length to the line map.
Ask suppliers to quote the requested Inconel 625 basis first and place alternatives on separate lines. Clarify whether pipe weights are theoretical or actual, whether dimensions are exact or approximate, and whether delivery means mill completion or arrival at the project destination.
Frequently Asked Questions
Is Inconel 625 automatically suitable for geothermal brine injection lines?
No. It is a defensible candidate because 625 pipe is a serious candidate where geothermal injection combines chloride corrosion with mechanical demand, pressure cycles, and uncertain chemistry during startup or maintenance. Final approval still requires the complete service envelope, design basis, fabrication plan, and project authority review. Selection should use a current brine analysis and credible upset envelope. Chlorides alone do not define risk; pH, temperature, dissolved gas, oxygen entry, scaling tendency, flow velocity, solids, and acid cleaning can change the controlling mechanism.
What ASTM standard applies to this pipe?
This procurement guide uses ASTM B444 for Inconel 625 pipe. Confirm the current edition, any ASME or owner requirement, and the exact product condition on the purchase order.
What should appear on the mill certificate?
For Inconel 625 pipe intended for geothermal brine injection lines, check heat number, UNS N06625, ASTM B444, chemistry, mechanical results required by the order, condition, dimensions, quantity, and traceable identification. Project-specific test results should be indexed clearly.
Does PMI replace the mill certificate?
No. For Inconel 625 pipe used in geothermal brine injection lines, PMI is an identity check within the capability of the method and instrument. It does not replace heat-specific chemistry, heat-treatment records, mechanical tests, dimensions, or full traceability. Use PMI and the certificate together.
Which dimensions are essential for pipe?
For Inconel 625 used in geothermal brine injection lines, state outside diameter, wall thickness, ordered length, straightness, end condition, ovality, and quantity by size. Define which tolerances follow ASTM B444, which are tighter, how they will be measured, and how much fabrication allowance is included.
What fabrication issue deserves the most attention?
For this application: Maintain a clean bore, qualified weld procedures, controlled bending, smooth transitions, and support geometry that avoids fretting. Acid-cleaning compatibility should be approved before the first cleaning campaign. More generally, protect the nickel-alloy surface, control strain and heat input, use qualified procedures, and verify final geometry after all thermal and mechanical operations.
Where should baseline inspection be concentrated?
Use the service damage map rather than equal spacing. Baseline wall mapping is most valuable at pump discharge, direction changes, injection points, support contacts, low points, and known scale zones. Test records, PMI, and heat traceability should link each length to the line map. Keep permanent location references so future readings are comparable.
Why can quotations differ so much for the same grade?
Quotes may assume different size, tolerance, condition, quantity, testing, usable yield, production route, packing, and delivery. Commercial comparison should include usable length, testing, corrosion allowance, installation support, expected scale-cleaning frequency, and downtime risk. Pipe price is only one part of injection-line lifecycle cost. Normalize those assumptions before comparing unit price.
What information should accompany a request for Inconel 625 pipe for geothermal brine injection lines?
For Inconel 625 pipe for geothermal brine injection lines, send Inconel 625, UNS N06625, ASTM B444, complete pipe dimensions, quantity, condition, service data, fabrication route, inspection and document requirements, destination, delivery term, and required arrival date. Include drawings when allowances are difficult to describe in text.
Final Procurement Position on Inconel 625 Pipe
Inconel 625 pipe for geothermal brine injection lines is a credible specification when the order connects UNS N06625, ASTM B444, the full service cycle, measurable dimensions, the correct condition, controlled fabrication, targeted inspection, and traceability. The technical case is strongest when it states both why the alloy is selected and what condition would require the decision to be reviewed.
For geothermal brine injection lines, begin with the process and failure map, not a stock list. Then use the drawing and fabrication plan to define the exact pipe. Compare suppliers on compliant usable material, evidence, schedule, packing, and lifecycle consequence rather than on price per kilogram alone.
